TDMAH (Tetrakis(dimethylamino)hafnium, cas 19782-68-4) is a widely used hafnium precursor for Atomic Layer Deposition (ALD) of Hafnium Oxide (HfO2) films, especially for high-k dielectrics and advanced thin-film applications. The main challenges are not limited to purity. Stable ALD HfO2 films also depend on precursor delivery, moisture control, thermal behavior, purge efficiency and complete ligand removal.

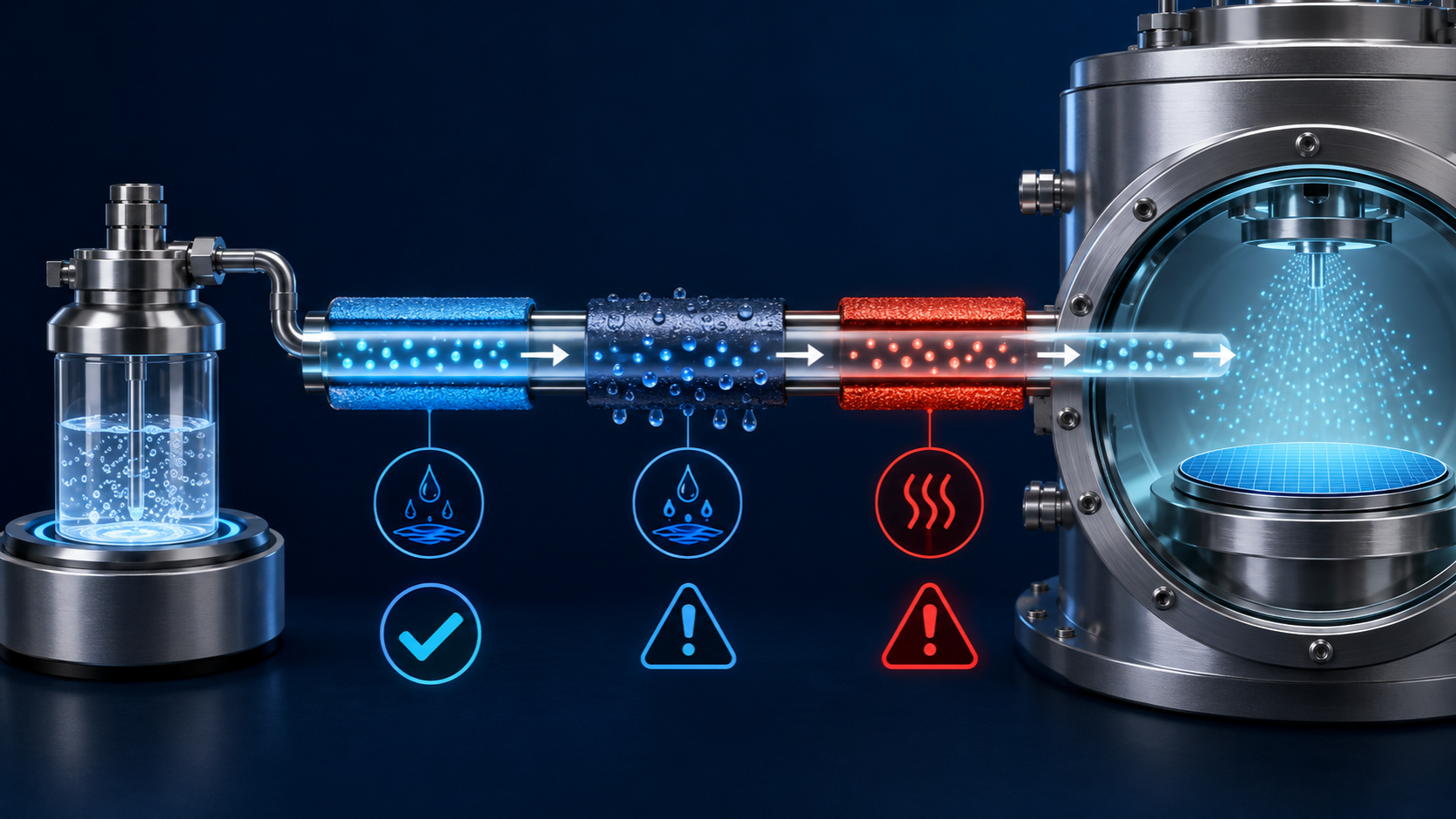

A practical challenge when using TDMAH in ALD is keeping the precursor delivery stable from the source container to the reaction chamber. In an ALD process, the precursor must reach the wafer surface in a controlled pulse amount so that the surface reaction can approach saturation. If the precursor vapor pressure is too low, the TDMAH dose may be insufficient. If the delivery system is overheated, the precursor may degrade before reaching the substrate.
For hafnium ALD precursors, vapor pressure, thermal stability and purity are key selection criteria. One precursor evaluation study emphasized that sufficient precursor vapor density is needed for adequate deposition rates, but the precursor should not be overheated beyond its self-decomposition temperature [2]. This is especially relevant for TDMAH because process engineers usually need to balance precursor vaporization, line temperature, dose saturation and precursor stability at the same time.
TDMAH is commonly handled as a heated, low-melting hafnium precursor source. Its actual performance depends on the thermal balance among the source container, delivery lines and reaction chamber. If the source temperature is too low, TDMAH may not generate enough vapor for stable ALD exposure, which can lead to low growth rate, poor saturation or non-uniform film thickness. If the delivery path is colder than the precursor vapor, delivery line condensation may occur. This can cause unstable dosing, long memory effects, residue formation or particle risk.
A TDMAH-based ALD study for HfS2 illustrates the point clearly: the TDMAH precursor was heated to 105 °C to obtain sufficient vapor pressure, and the deposition temperature was kept above 120 °C to prevent precursor condensation [4]. Although this example is for HfS2 rather than HfO2, it shows why thermal balance is critical for TDMAH delivery. The key question is not simply whether TDMAH has vapor pressure, but whether the complete delivery system can maintain repeatable vapor transport without condensation, overheating or precursor decomposition.
Another major challenge is moisture sensitivity. TDMAH is a water-reactive hafnium amide precursor, so storage, transfer and tool operation must be designed to avoid exposure to air and moisture. Safety data for tetrakis(dimethylamido)hafnium(IV) identifies the material as water-reactive and corrosive, with hazard statements indicating that contact with water can release flammable gases. The same SDS instructs handling under inert gas, protection from moisture and storage under inert gas [3].
This is not only a safety issue. In ALD processing, trace moisture may cause precursor hydrolysis before TDMAH reaches the chamber. That can change apparent vapor pressure, generate nonvolatile residues, increase particle risk or create unstable delivery behavior. A hafnium precursor selection study identified three common degradation routes for Hf precursors: hydrolysis from trace moisture contamination, thermal pyrolysis and oligomerization. It also noted that degradation by hydrolysis or thermal decomposition can produce volatile by-products that influence measured vapor pressure [2].
For users, this means precursor stability should be evaluated together with handling and packaging. A TDMAH supplier should be able to discuss moisture-controlled filling, sealed packaging, storage conditions and whether the material has been protected from air during production and transfer. In real ALD use, a high assay number alone does not guarantee stable process behavior if the precursor has been exposed to moisture or thermally stressed during distribution.

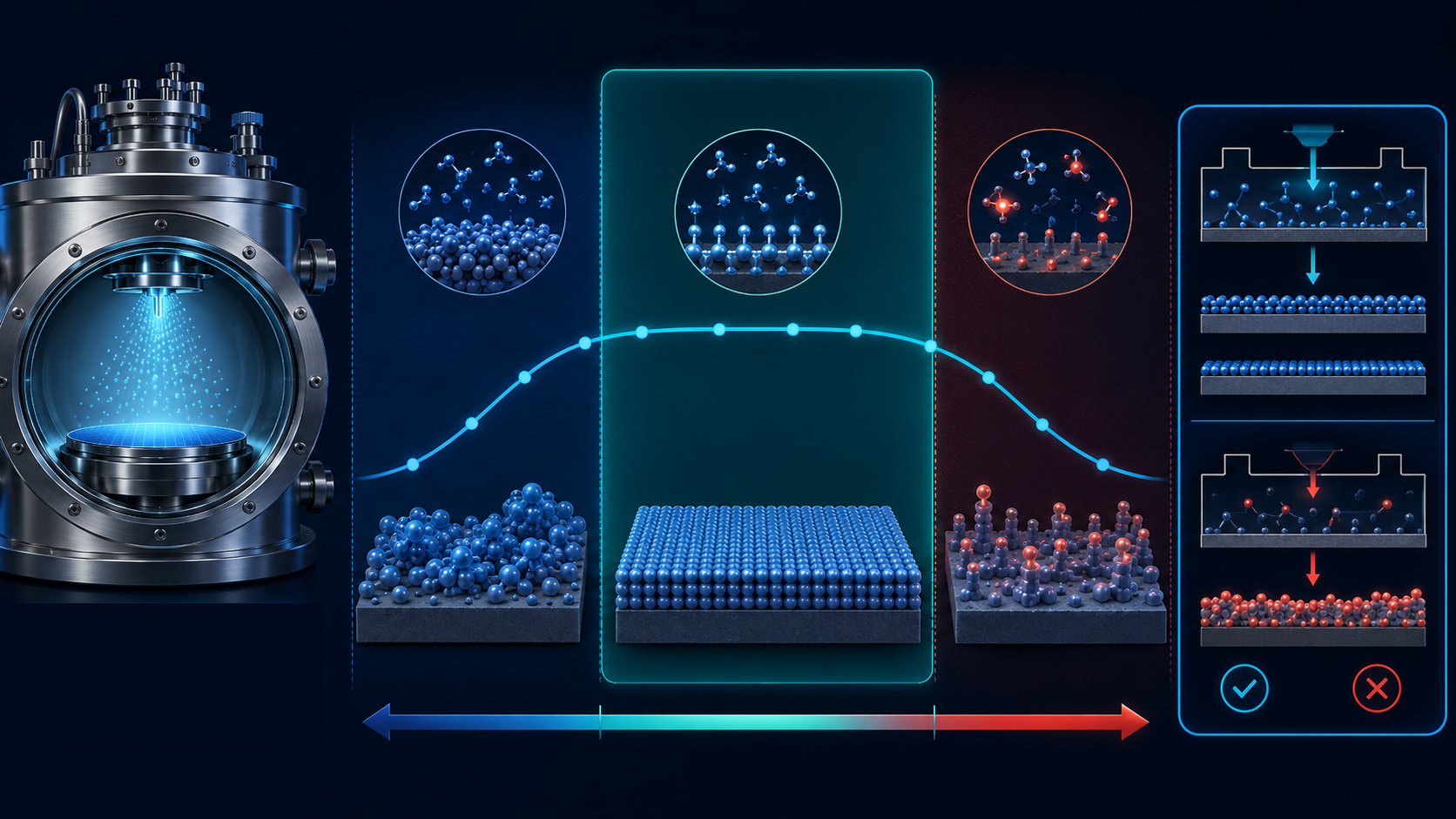

TDMAH is reactive enough for relatively low-temperature Hafnium Oxide ALD, but the best ALD temperature window is not necessarily the lowest possible temperature. Temperature affects vapor delivery, surface reaction kinetics, ligand removal, crystallinity and Growth per Cycle (GPC). If the temperature is too low, condensation and incomplete reaction may become problems. If it is too high, thermal decomposition of the ligand may disturb the self-limiting nature of ALD.
A 2023 study of ALD HfO2 films using TDMAH and water or ammonia water examined growth between 85 and 350 °C. The authors reported GPC values generally in the range of about 1.2–1.6 Å/cycle, depending on process conditions. At low temperatures of 100 °C or below, the films grew faster but were more structurally disordered, amorphous and/or poorly crystallized compared with films grown at higher temperatures [1].
The same study suggested that the increase in GPC below 100 °C could be related to precursor condensation [1]. This is an important warning for process development. A higher apparent growth rate is not always a sign of better ALD behavior. It may reflect excess precursor residence, condensation or non-ideal surface chemistry. For applications that require uniform, dense and electrically reliable HfO2, low-temperature deposition must be validated carefully rather than judged only by GPC.

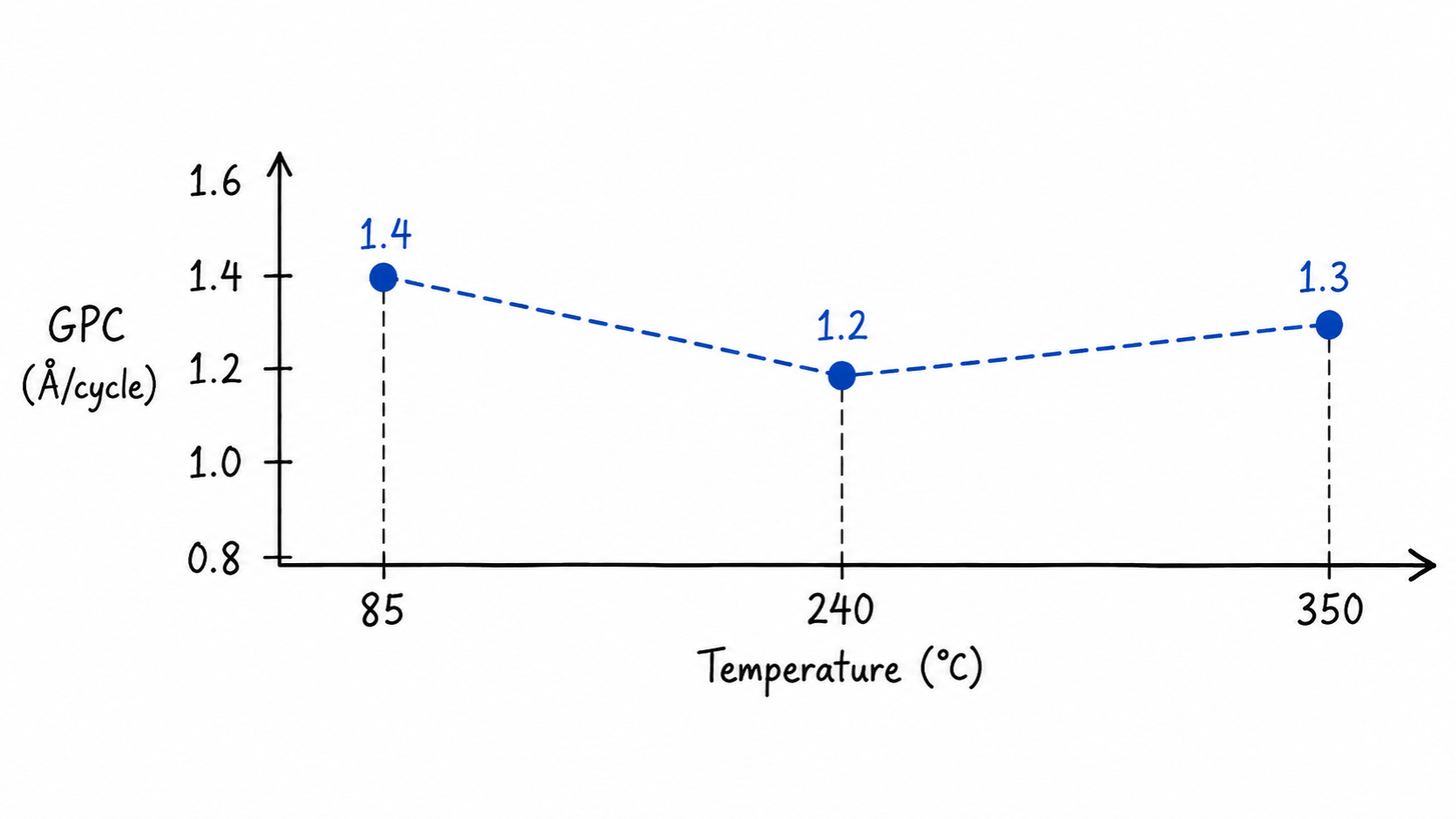

At higher temperatures, TDMAH can move away from ideal self-limiting ALD behavior. In the same 2023 TDMAH/H2O study, the GPC decreased from around 1.4 to 1.2 Å/cycle as growth temperature increased from 85 to 240 °C. However, when the deposition temperature reached 350 °C, GPC increased again to about 1.3 Å/cycle. The authors attributed this increase to the possible decomposition of precursor ligands under high thermal energy [1].
This is the other side of the ALD window. Raising temperature may improve crystallinity, density or ligand removal, but excessive temperature can create ligand thermal decomposition and more CVD-like behavior. For TDMAH, process engineers need to identify a temperature range where the precursor has enough volatility and reactivity but does not undergo significant decomposition during delivery or on the surface.
Purge time is also part of the ALD window. In the TDMAH/H2O work, shortening nitrogen purge time from about 10 s to 5 s increased GPC. For example, at 350 °C, GPC increased from about 1.3 to 1.6 Å/cycle under short-purge conditions. The authors suggested that very short purge times may leave reagents in the chamber, causing a reaction similar to CVD [1].
This matters because ALD depends on separated, self-limiting half-reactions. If TDMAH, oxidant or by-products remain in the reactor during the next pulse, the process may lose part of its ALD character. The result can be unstable GPC, rougher morphology, less controlled stoichiometry and weaker process repeatability.
After TDMAH delivery, moisture control and temperature window are optimized, the next challenge is whether the final HfO2 film meets the required composition and dielectric performance. TDMAH contains dimethylamido ligands, so incomplete dimethylamido ligand removal can leave carbon- and nitrogen-related residues. For semiconductor-grade ALD HfO2 films, this is one of the most important quality concerns.
In TDMAH/H2O and TDMAH/ammonia-water ALD studies, carbon and nitrogen were detected in HfO2 films. The 2023 TDMAH study identified the ALD process chemistry, the metal-organic precursor and N2 carrier gas as possible sources of carbon and nitrogen residues. The reported carbon content was about 6%, while nitrogen content was about 4.5%. However, the authors also noted limitations related to EDX measurement, so these values should not be treated as universal values for all TDMAH ALD processes [1].
The correct conclusion is not that TDMAH always causes unacceptable contamination. Rather, the challenge is that TDMAH’s organic amide ligands must be fully removed under the selected process conditions. Low temperature may increase precursor concentration or condensation risk. High temperature may increase ligand decomposition. Short purge time may leave residual species in the chamber. All of these factors can affect film impurities, especially C/N residues.
Besides C/N residues, oxygen stoichiometry also matters. HfO2 performance depends on the O:Hf ratio, defect state and film structure. Oxygen-deficient films may contain more oxygen vacancies, which can influence dielectric behavior, leakage current and reliability. In the 2023 TDMAH study, most films showed O:Hf ratios close to HfO2 stoichiometry, around 1.94–2.03, except for films grown with short purge times. The study also noted that a decrease in the O:Hf ratio may increase the concentration of oxygen vacancies in HfO2 [1].
This is why impurity control and stoichiometry control should be discussed together. A TDMAH process may produce a film with acceptable thickness uniformity but still fail to meet electrical-performance targets if ligand removal, oxygen incorporation or purge conditions are not well controlled. Research on ALD and PEALD HfO2 also shows that charged or neutral oxygen vacancies can strongly affect leakage current, flat-band voltage shift and dielectric breakdown behavior [5].

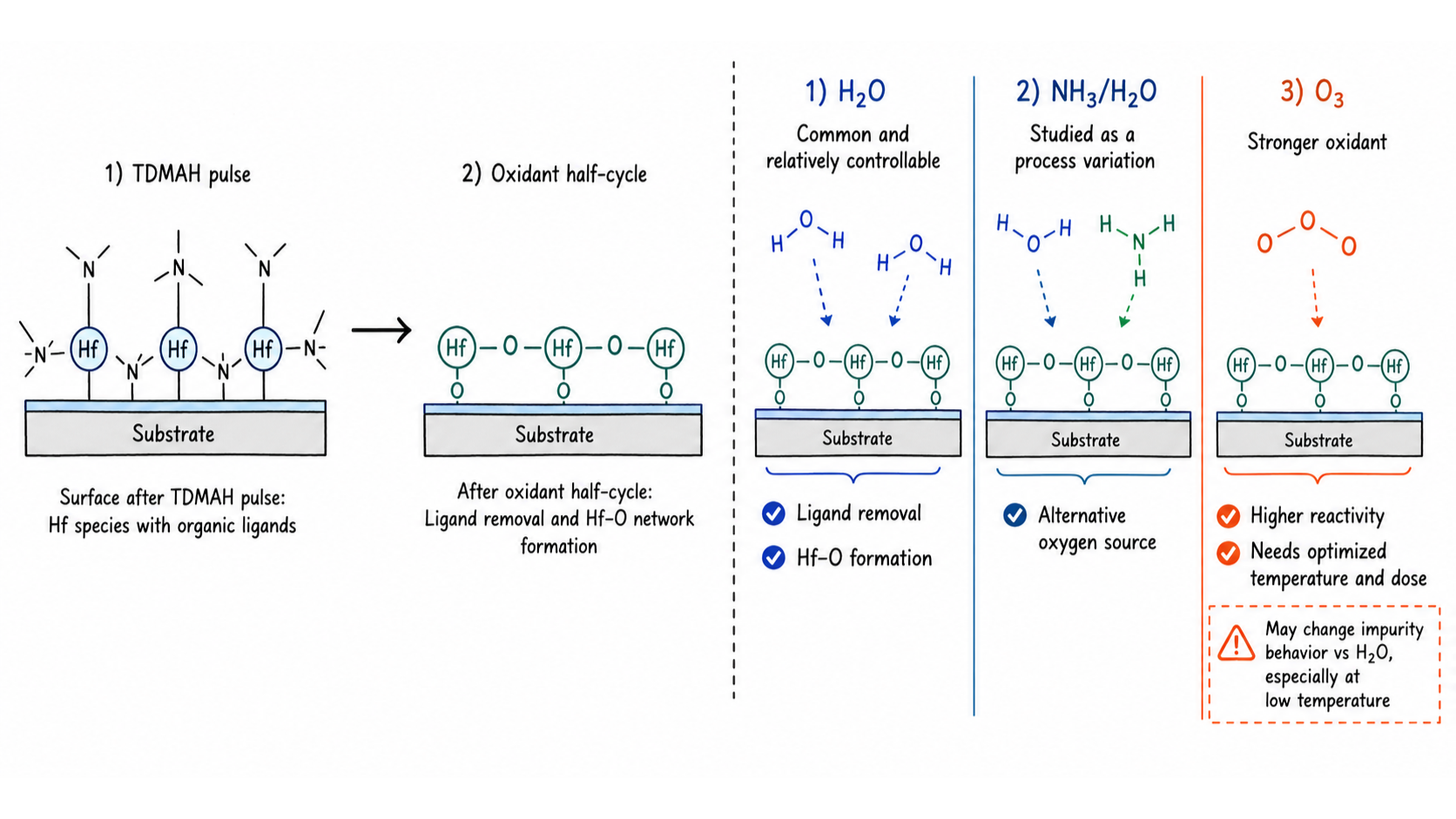

The oxidant is not a separate topic; it is part of the TDMAH reaction challenge. TDMAH supplies hafnium, while the oxidant half-cycle removes organic ligands and helps form the Hf–O network. H2O is common and relatively controllable. NH3/H2O has been studied as an oxygen source variation in TDMAH-based HfO2 ALD [1]. O3 is a stronger oxidant and can be useful in hafnium oxide ALD chemistry, but it still requires optimized temperature and dose. Earlier work on hafnium alkylamide/O3 chemistry showed that O3-based processes can involve different impurity behavior compared with H2O-based processes, especially at lower temperatures [6].
Plasma-assisted ALD may support lower-temperature growth or different defect control, but it can also change the nature of oxygen vacancies and film electrical behavior. Therefore, the best oxidant is not universal. It must match the substrate, thermal budget, impurity tolerance and target dielectric performance.
TDMAH performance depends not only on the ALD recipe but also on the quality and consistency of the precursor itself. For hafnium precursors used in gate oxide or other high-value thin-film applications, supplier-side evaluation should include vapor pressure, thermal stability and metallic contamination [2].
In practical purchasing, users should ask for more than a simple assay. Important items include metal-basis purity, trace metal impurities, water or moisture control, nonvolatile residue, packaging cleanliness and lot-to-lot consistency. Zirconium (Zr) levels are also important because Zr is chemically close to Hf and may be present in hafnium raw materials or precursor streams.
Even if the ALD recipe is optimized, inconsistent TDMAH quality can cause process drift. A small difference in degradation state, residual impurity, moisture exposure or metal contamination may influence dose stability, particle risk, impurity incorporation, GPC and final film properties. For this reason, TDMAH supplier qualification should include both chemical specification review and process-oriented communication.
Using TDMAH successfully in ALD HfO2 processes is not only a matter of selecting a high-purity hafnium precursor. Its performance depends on whether the precursor, delivery system and ALD recipe are matched as one controlled process. A stable TDMAH process should provide repeatable vapor delivery, avoid moisture-induced degradation, maintain a practical ALD window and support complete surface reactions without excessive residue or non-ideal CVD-like growth.
For process users, the key is to evaluate TDMAH together with handling conditions, packaging quality, analytical data and supplier consistency. This helps reduce unexpected variation during film development, scale-up or production qualification.
For TDMAH requirements, technical discussion or supply information, please contact us at jomin@wolfachem.com. We can help provide product information and discuss application-related concerns for ALD precursor use.
[1] Sylwia Gieraltowska et al., “Atomic Layer Deposition of HfO2 Films Using TDMAH and Water or Ammonia Water,” Materials, 2023.
[2] “Optimizing the Selection and Supply of Hf Precursor for Gate Oxide Deposition,” Semiconductor Fabtech / Air Liquide Balazs.
[3] Sigma-Aldrich Safety Data Sheet, “Tetrakis(dimethylamido)hafnium(IV).”
[4] Z. Baji et al., “Investigation of the Tetrakis(dimethylamino)hafnium and H2S ALD Process: Effects of Deposition Temperature and Annealing,” 2022.
[5] M.A. Martínez-Puente et al., “ALD and PEALD Deposition of HfO2 and Its Effects on the Nature of Oxygen Vacancies,” Materials Science in Semiconductor Processing, 2022.
[6] Xinye Liu et al., “ALD of Hafnium Oxide Thin Films from Tetrakis(ethylmethylamino)hafnium and Ozone,” Journal of The Electrochemical Society, 2005.
