In semiconductor manufacturing, purity is not simply a label on a specification sheet. Wet chemicals, process gases and deposition precursors can contact wafer surfaces or participate directly in forming functional films. A trace contaminant in a bulk material may become critical when it reaches an interface, dielectric layer or interconnect feature.
For this reason, impurity control is fundamental to semiconductor-grade chemicals, including high-purity wet chemicals, ALD precursors and CVD precursors. Effective control supports stable processes and reliable devices.
What Are Impurities in Semiconductor Chemicals?
Impurities are unwanted substances introduced through raw materials, synthesis, purification, packaging, storage, delivery systems or the surrounding manufacturing environment. Critical categories include metals, chemical impurities, particles and airborne molecular contamination.

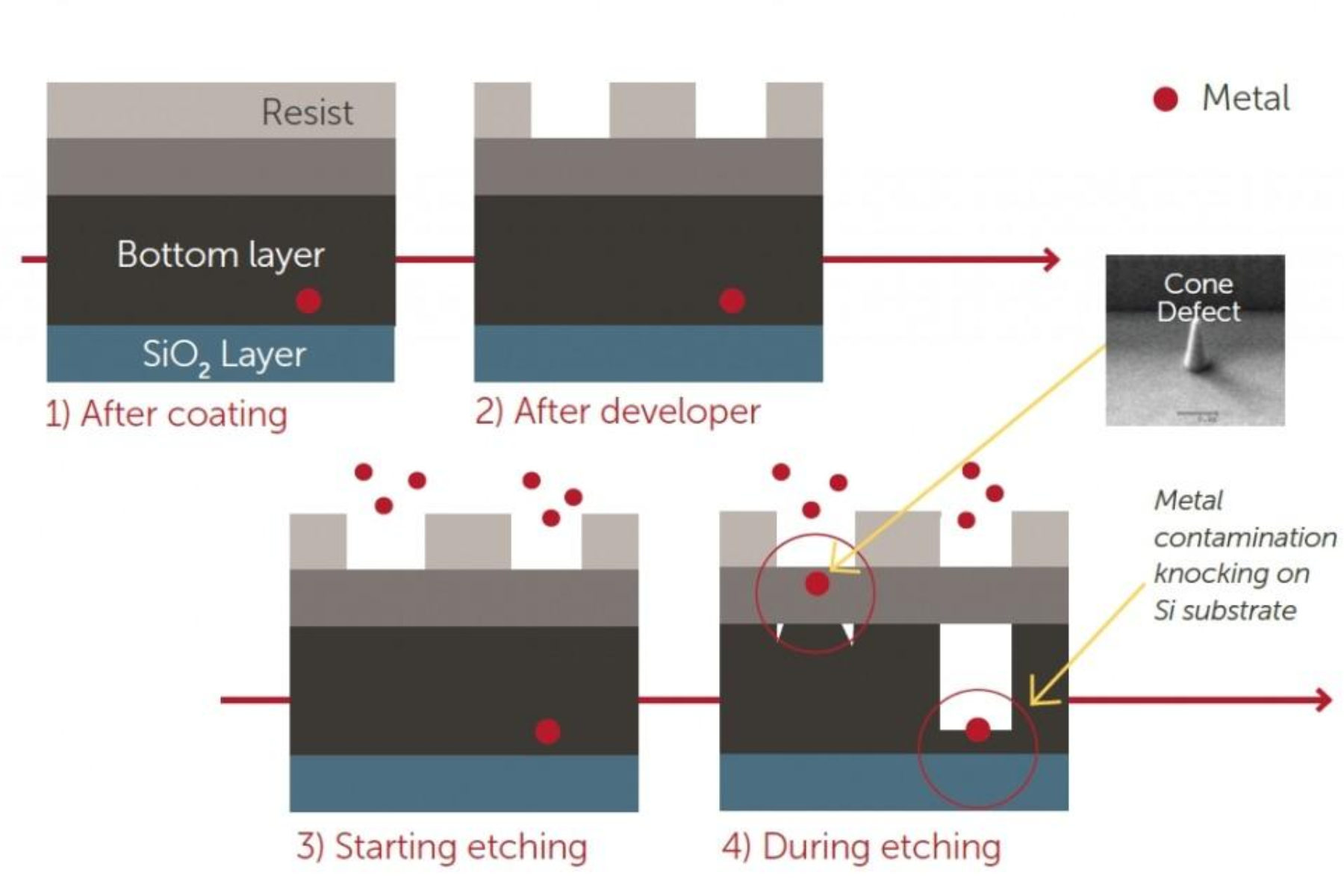

Trace metal contamination includes sodium, potassium, calcium and transition metals such as iron, copper, nickel and chromium. Mobile ionic species can contribute to charge instability in dielectric structures, while transition metals may create electrically active defects or affect interface quality. The trace metal profile may therefore matter as much as main-component assay.
This category includes residual starting materials, solvents, by-products, degradation products, moisture, oxygen, halides and ligand-derived residues.
In an ALD or CVD precursor, impurities that affect volatility, thermal stability or surface reaction pathways may interfere with delivery and film growth. A high headline purity value alone does not demonstrate suitability for semiconductor processing.
Particle contamination includes insoluble solids, colloids, gels, precipitated degradation products and particles shed from containers, valves, tubing or filters. In liquid semiconductor chemicals and precursor solutions, particles may be carried directly to wafer surfaces or into delivery systems.

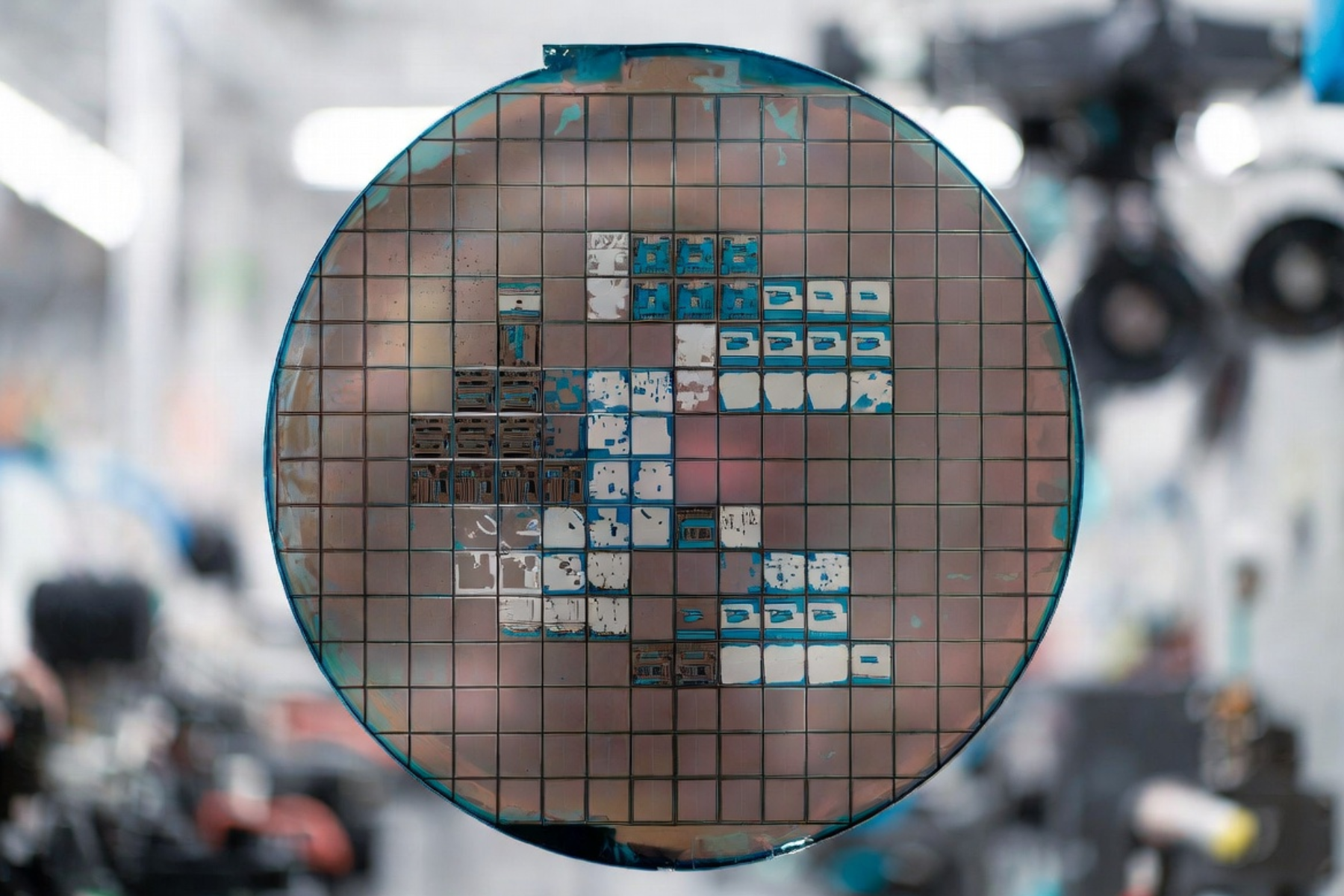

A deposited particle may disrupt pattern features, block local surface reactions or create a localized thin-film defect. As feature sizes decrease, smaller particles become yield-relevant. Particle control therefore requires filtration where applicable, together with clean filling, compatible packaging and contamination-controlled transfer.
Airborne molecular contamination refers to gaseous or vapor-phase contaminants in cleanrooms and handling environments. AMC is commonly classified as molecular acids, molecular bases, molecular condensables and molecular dopants.
Although AMC may not be part of the supplied chemical, it may adsorb on wafer surfaces, container openings or tool components during use. AMC can change surface chemistry, contribute to haze or corrosion, or introduce dopant-like effects.
Particles, residues and surface contamination can interfere with cleaning, patterning, deposition or etching. A localized defect may propagate through later process steps and reduce functional die yield.
Unwanted ions, metals or residual species near dielectric interfaces can contribute to charge trapping and local weakness in insulating films. Results may include increased leakage current and unstable electrical behavior.
Threshold voltage is sensitive to charge distribution near the gate stack. Mobile ionic contamination, particularly alkali metals, may migrate under electric field and thermal stress, contributing to threshold voltage shifts and long-term instability.
In wet cleaning and etching applications, uncontrolled ionic contamination, residues or particles can affect surface condition, residue formation and process repeatability. Consistent semiconductor chemical quality helps support stable etch and cleaning outcomes.
ALD and CVD depend on controlled precursor delivery and predictable surface reactions. Moisture, oxygen, residual solvents, decomposition products or unintended elemental contamination may influence nucleation, film composition, density, resistivity or uniformity. Particles may create localized film defects.
Final film quality also depends on co-reactants, substrate condition, delivery hardware and chamber history.
Some metallic impurities can introduce deep-level defects that promote carrier trapping or recombination. Failures may emerge under reliability stress even when initial testing appears acceptable.
As critical dimensions decrease, a contaminant occupies a larger relative portion of a feature, film or interface. Thin layers and tighter defect budgets leave less room for contamination-related variation.
Advanced devices increasingly rely on complex three-dimensional and high-aspect-ratio structures. These geometries require controlled surface chemistry and conformal deposition throughout the feature, increasing sensitivity to contamination that affects nucleation, coverage or residue removal.
High-k dielectrics, metal gates, barriers, liners and advanced interconnect-related films require specialized chemicals and precursors. These applications drive demand for chemicals with controlled metals, residues, moisture and particles.
Control begins with raw material qualification based on impurity profiles, rather than assay alone.
Purification methods should match product chemistry: distillation for suitable liquids, sublimation for volatile solids, recrystallization where appropriate, and filtration for particulate removal from compatible liquid products.
Purified material can be recontaminated during transfer, filling or packaging. Controlled handling areas, compatible contact materials, prepared containers and closed filling procedures reduce this risk.
For moisture- or oxygen-sensitive precursors, inert-atmosphere handling and secure packaging are especially important.
Reliable impurity control requires analytical methods matched to each impurity type. For elemental impurities, ICP-MS is used for ultra-trace metal analysis, while ICP-OES is suitable for routine elemental screening and higher-concentration metal impurities. ICP-MS/MS may be used when spectral interference needs to be reduced in complex matrices.
For organic impurities and residual solvents, GC, GC-MS or HPLC can be selected according to volatility and thermal stability. Ion chromatography is used for ionic residues such as halides, sulfate and nitrate.
Moisture and oxygen-sensitive precursors also require suitable water and oxygen analysis. For compatible liquid products, particle counting is used to evaluate particle contamination. For ALD and CVD precursors, NMR, FTIR and thermal analysis can further support identity, stability and batch consistency.
A reliable semiconductor chemical supplier should offer more than a catalog purity grade. Customers should evaluate controlled impurity classes, analytical methods, packaging cleanliness, lot traceability, change control and technical support.
For ALD and CVD precursors, supplier capability should also include an understanding of volatility, thermal behavior, delivery compatibility and the connection between precursor quality and deposited-film performance.
Impurity control matters because semiconductor chemicals interact directly with the surfaces, interfaces and films that determine device performance.
Leveraging the aforementioned quality control capabilities—specifically our advanced purification processes and comprehensive quality management system—we are able to consistently and reliably supply our customers with high-purity semiconductor materials, guaranteeing a purity level of 6N or higher.
Furthermore, our analytical laboratory is equipped with various models of ICP-MS systems from Agilent and PerkinElmer, enabling high-sensitivity trace metal analysis and allowing us to meet the diverse requirements of our clients regarding specific metal ion detection parameters and detection limits.
