Modern DRAM manufacturing relies on high-purity metal-organic compounds. The main precursors contain zirconium (Zr), hafnium (Hf), titanium (Ti), and silicon (Si). These chemicals are vital raw materials for ALD and CVD processes. They help form the ultra-thin insulating layers and electrodes inside DRAM capacitors.
As DRAM chips shrink below 7nm, making reliable storage capacitors becomes a tough engineering challenge. Memory cells must store enough electrical charge in a tiny space without leaking current. To do this, chip makers use advanced high-k (high dielectric constant) materials. For process engineers and procurement teams, understanding the precursors used to build these thin films is essential.
Instead of just listing chemicals, it helps to look at where they go inside a DRAM cell. Modern memory chips are incredibly complex. Different parts of the chip need very different chemical properties.
The most important part of a DRAM cell is the capacitor, which stores the electrical charge. As capacitors get taller and narrower, old insulating materials no longer work. To stop current leaks, chip makers now use high-k materials.

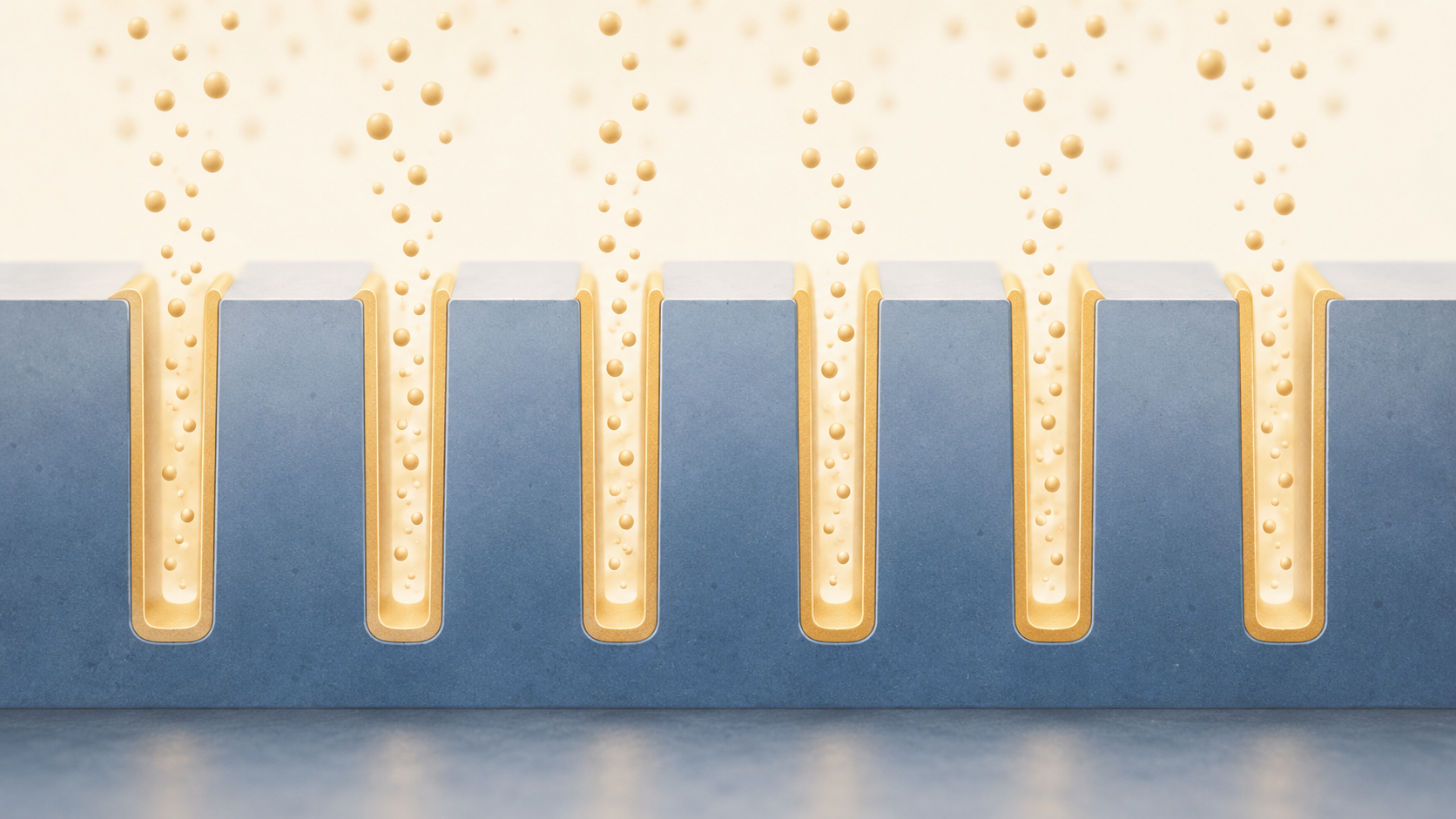

Today, zirconium oxide (ZrO2) is the industry standard for DRAM capacitors. To build this ultra-thin layer, engineers rely on high-purity zirconium precursors. Compounds like TEMAZ are vaporized inside ALD chambers. This lays down ZrO2 atom by atom. It ensures a perfect coating, even deep inside tiny trenches.
Hafnium is vital when higher performance is needed. Hafnium oxide (HfO2) has a great dielectric constant. Fabs often combine these materials into complex stacks, like the ZAZ (zirconium-aluminum-zirconium) structure, to maximize charge storage. Building these stacks requires highly stable, electronic-grade hafnium precursors. This ensures a clean reaction without unwanted carbon leftover.
A capacitor needs electrodes to move electrical current in and out. In modern DRAM, these electrodes are usually made of Titanium Nitride (TiN).
To build these metal layers without ruining the fragile High-k material underneath, factories use Titanium precursors like TiCl4 or TDMAT. Engineers choose these specific chemicals because they form solid, highly conductive layers at lower temperatures. This protects the memory cell from heat damage.
Finally, each memory cell must be separated from its neighbors to stop electrical interference. This is where Silicon precursors, like TSA or silanes, come in. They deposit Silicon Dioxide (SiO2) or Silicon Nitride (Si3N4). These silicon layers act as the walls, masks, and shields that safely hold the whole DRAM chip together.
Not just any chemical can enter a semiconductor cleanroom. Process engineers judge precursors using four strict rules:
Good Volatility and Vapor Pressure: The precursor must vaporize smoothly at the right temperature. This allows controllers to send exact amounts of the chemical into the chamber.
High Thermal Stability: The chemical must stay stable as it travels through supply lines. It should only break down when it touches the hot wafer surface, not before.
Clean Reactions: In ALD processes, precursors must react cleanly on the wafer. They should leave no carbon, nitrogen, or halogens behind in the film.
Ultra-High Purity: Even tiny amounts of metals like iron, sodium, or copper can ruin chips. Because of this, precursors must have a purity of 5N (99.999%) or better.
Shrinking DRAM below 10 nanometers is no longer just about physics; it is mostly about chemistry. The speed and reliability of modern memory chips depend entirely on these ultra-thin films.
As we have seen, making perfect films requires the right zirconium, hafnium, titanium, and silicon precursors. These chemicals must balance volatility, thermal stability, and absolute purity. Even a tiny drop in chemical quality can cause film defects and ruin chips.
When choosing materials, exact technical data and consistent quality are everything. Your team might be testing new high-k materials, expanding ALD processes, or just looking for a stable supply chain. Whatever your goal, working with an experienced chemical partner makes a big difference.
We invite you to explore Wolfa’s complete line of semiconductor precursors. Please contact our technical team to discuss your specific process needs, request a COA, or ask for evaluation samples.
