Silicon Tetrachloride, also known as SiCl4, is a volatile chlorosilane liquid used in silicon-containing processes, optical fiber manufacturing, and thin-film deposition. Due to its relatively low boiling point and high vapor pressure, SiCl4 is not difficult to vaporize, especially when compared to many solid precursors or those with low vapor pressure.
However, real silicon tetrachloride vaporizer systems can still experience clogging. The problem is usually not that SiCl4 cannot evaporate. More often, this is because it is highly sensitive to moisture and prone to forming non-volatile silicon oxides or silica-like residues; additionally, issues such as corrosive particles, cold spots, condensation, and localized liquid retention may also occur.

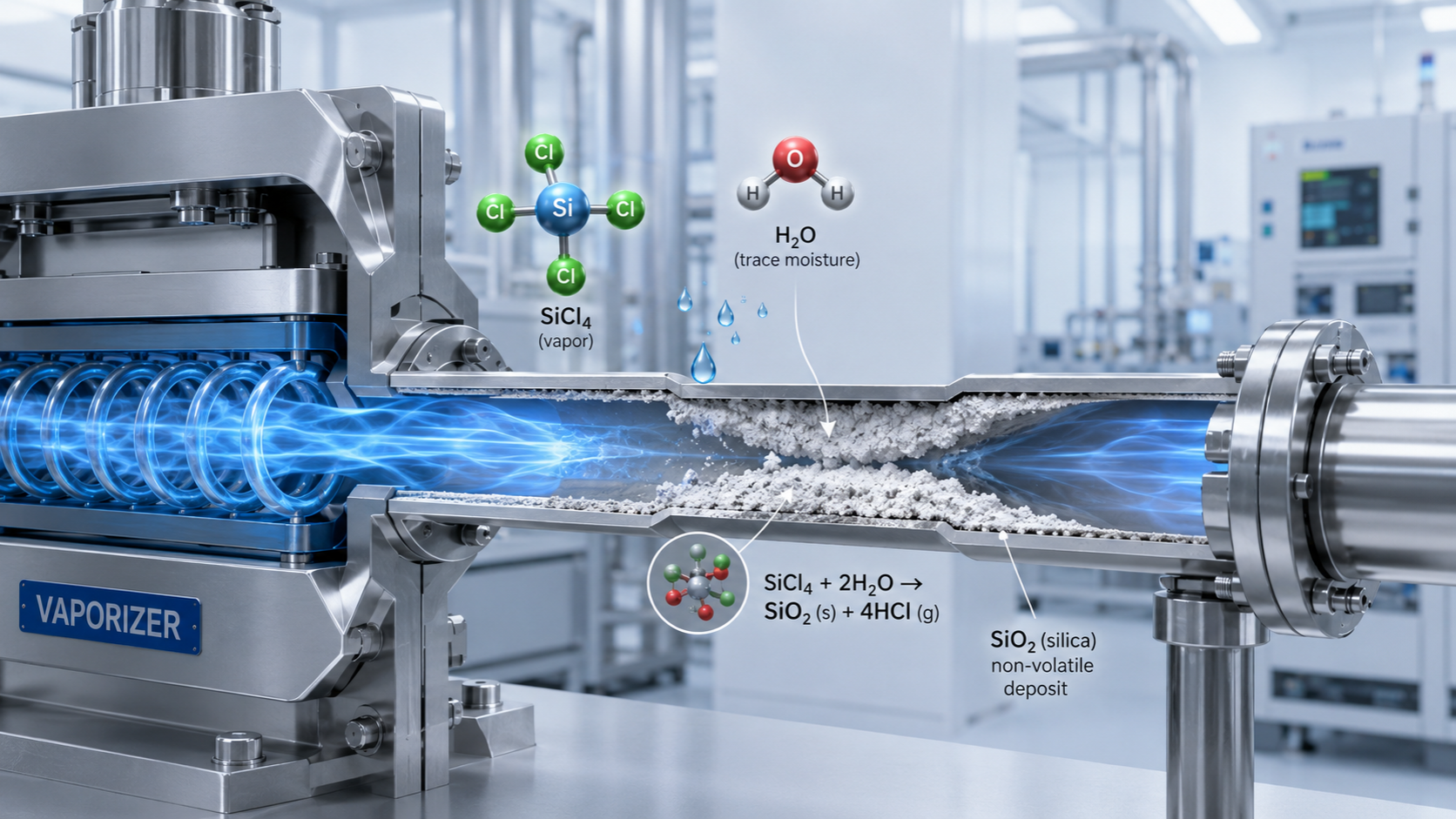

The key chemistry behind SiCl4 vaporizer clogging is hydrolysis. Silicon Tetrachloride reacts readily with water or moist air. A simplified overall reaction is:
SiCl4 + 2H2O → SiO2 + 4HCl
This equation explains why a volatile liquid can still generate non-volatile deposits. In a vaporizer or delivery line, even a small amount of water can trigger local hydrolysis. The water source may be insufficient purging, leaking fittings, wet carrier gas, residual cleaning solvent, contaminated valves, poorly dried parts, or exposure during change-out and maintenance.
Once hydrolysis begins, the silicon-containing residue is not expected to vaporize under normal SiCl4 delivery conditions. It may adhere to internal surfaces, collect in narrow channels, or become trapped in filters and valve seats. Over time, this reduces the effective flow path, increases pressure drop, and may block flow.
The residue should be described carefully. In real systems, it may not be pure silicon dioxide. It may include silica, silica-like silicon oxide, hydrolyzed silicon-containing material, chloride species, corrosion-derived particles, or mixed residues. Without analytical confirmation, “silica-like” or “silicon oxide-based” deposit is more accurate than assuming one pure compound.
Hydrolysis of Silicon Tetrachloride also produces hydrogen chloride. HCl is volatile, but when moisture is present it becomes highly corrosive. In delivery systems, HCl and moisture may attack susceptible tubing, fittings, filters, valves, seals, and internal surfaces.
Corrosion products may detach as particles, and roughened surfaces can give hydrolysis products more places to attach. Corrosion may not be the first cause of SiCl4 clogging, but it can accelerate the problem after moisture enters the system. In operation, this may appear as pressure increase, unstable vapor flow, or repeated filter loading.

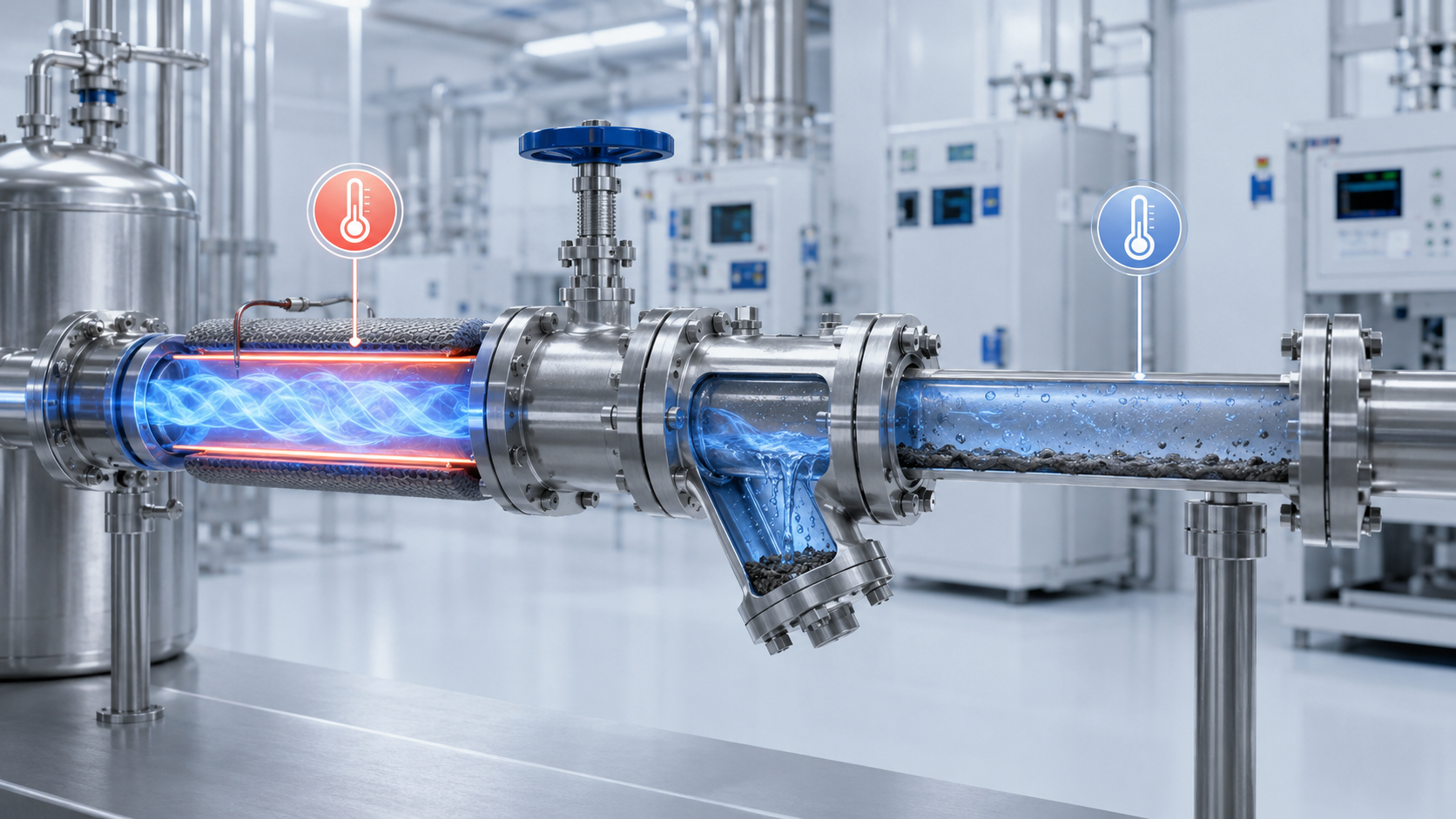

Although Silicon Tetrachloride is volatile, thermal control still matters. If part of the delivery line is cooler than the vaporizer outlet, SiCl4 vapor may partially condense. This can happen at unheated valves, poorly insulated transfer lines, low-flow areas, dead legs, filters, or downstream connections with inconsistent heat tracing.
Local condensation increases clogging risk. Liquid hold-up increases contact time between SiCl4 and trace moisture, while non-volatile impurities or hydrolysis products may concentrate at the same location. These points often become the first visible locations of residue build-up. Therefore, the full temperature profile from container to downstream line should be stable enough to avoid condensation.
The risk of SiCl4 vaporizer clogging also depends on material quality and handling history. A high-purity Silicon Tetrachloride product for electronic or controlled vapor delivery use should have controlled water content, low non-volatile residue, and low metallic impurities. However, a high assay value alone does not guarantee smooth delivery. Moisture or trace residue may still enter during filling, sampling, transfer, cylinder replacement, or maintenance.
Users should review more than the headline purity number. Useful information includes the COA, SDS, water specification, non-volatile residue, packaging configuration, valve type, container dryness, and compatibility with a chlorosilane precursor. Wet filters, cleaning residues, poorly dried parts, or contaminated valves can provide reactive sites for localized hydrolysis.
Because Silicon Tetrachloride is moisture-sensitive, the first control measure is dry, inert, closed handling. Containers should remain tightly closed and protected from ambient air. Carrier gas should be dry, transfer lines should be leak-tight, and purge procedures should be validated before SiCl4 is introduced into the vaporizer.
The system should also be protected during maintenance. Replacement filters, valves, and fittings should be dry before installation. Water-containing cleaning residues should not remain before restart. Cylinder change-out should follow procedures suitable for moisture-sensitive chlorosilanes, not general liquid chemical handling practice. If water ingress is not controlled, increasing vaporizer temperature alone will not solve the clogging problem.
Thermal design should support stable vapor delivery. The vaporizer and downstream line should maintain a consistent temperature profile, and cold spots should be eliminated as much as practical. Heat tracing should cover valves, fittings, filters, and other components where condensation is likely. Dead volumes and low-flow regions should be minimized because they increase residence time and encourage residue accumulation.
Filters can protect downstream equipment, but they should be monitored because they may become the first clogging point. Operators should track pressure drop, flow stability, vaporizer temperature, and delivery-line temperature. Repeated clogging should trigger a review of vaporizer geometry, line heating, purge quality, carrier-gas dryness, material compatibility, maintenance records, and deposit analysis.
Silicon Tetrachloride is not a difficult precursor to vaporize in terms of boiling point or vapor pressure. When a SiCl4 vaporizer starts to clog, the root cause is more often found in the details of the delivery system: trace moisture left after maintenance, an insufficient purge before start-up, a slightly leaking fitting, or a wet filter element.
These small control failures can trigger local hydrolysis, forming non-volatile silicon oxide or silica-like residues that gradually narrow the flow path.
In practical operation, early warning signs may include unstable vapor flow, increasing pressure drop, repeated filter loading, or visible residue near valves, fittings, and colder sections of the line. Simply raising the vaporizer temperature may not solve the problem if moisture ingress, condensation, or system cleanliness has not been addressed.
A reliable Silicon Tetrachloride vapor delivery process should combine high-purity material, dry packaging, dry carrier gas, stable heat tracing, and clean, well-maintained components.
For users working with Silicon Tetrachloride, choosing a supplier that understands both material quality and vapor delivery requirements can help reduce unexpected clogging risks during process evaluation and scale-up.
