Tris(methylcyclopentadienyl)yttrium, or Y(MeCp)3, is a key precursor for making advanced high-k materials and ferroelectric thin films.
However, its high reactivity makes it very sensitive to air and moisture. This is the same trait that allows for low-temperature atomic layer deposition (ALD). Because it easily binds with oxygen, even parts-per-billion (ppb) levels of water vapor can cause permanent chemical changes.
Keeping Y(MeCp)3 pure is more than a handling issue. It is essential for stable growth rates and top-quality thin films in semiconductor manufacturing.
Y(MeCp)3 degrades quickly when it meets moisture. Even trace amounts of water break the yttrium–carbon bonds. This forms yttrium hydroxide and, eventually, solid yttrium oxide.
This reaction also releases a byproduct called methylcyclopentadiene. The new yttrium compounds are solid and have very low vapor pressures. As a result, they do not easily turn into gas during the deposition process.
This breakdown creates costly process issues. The main problem is clogging in the delivery system. Solid deposits build up in precursor containers, mass flow controllers (MFCs), or high-speed ALD valves. This causes unstable gas delivery, changing growth rates, and unplanned equipment downtime.
Also, damaged precursors bring oxygen and carbon impurities into the thin films. This can ruin electrical properties, like leakage current and breakdown strength. Losing wafer yield and wasting expensive precursors is a huge cost for large-scale fabs.

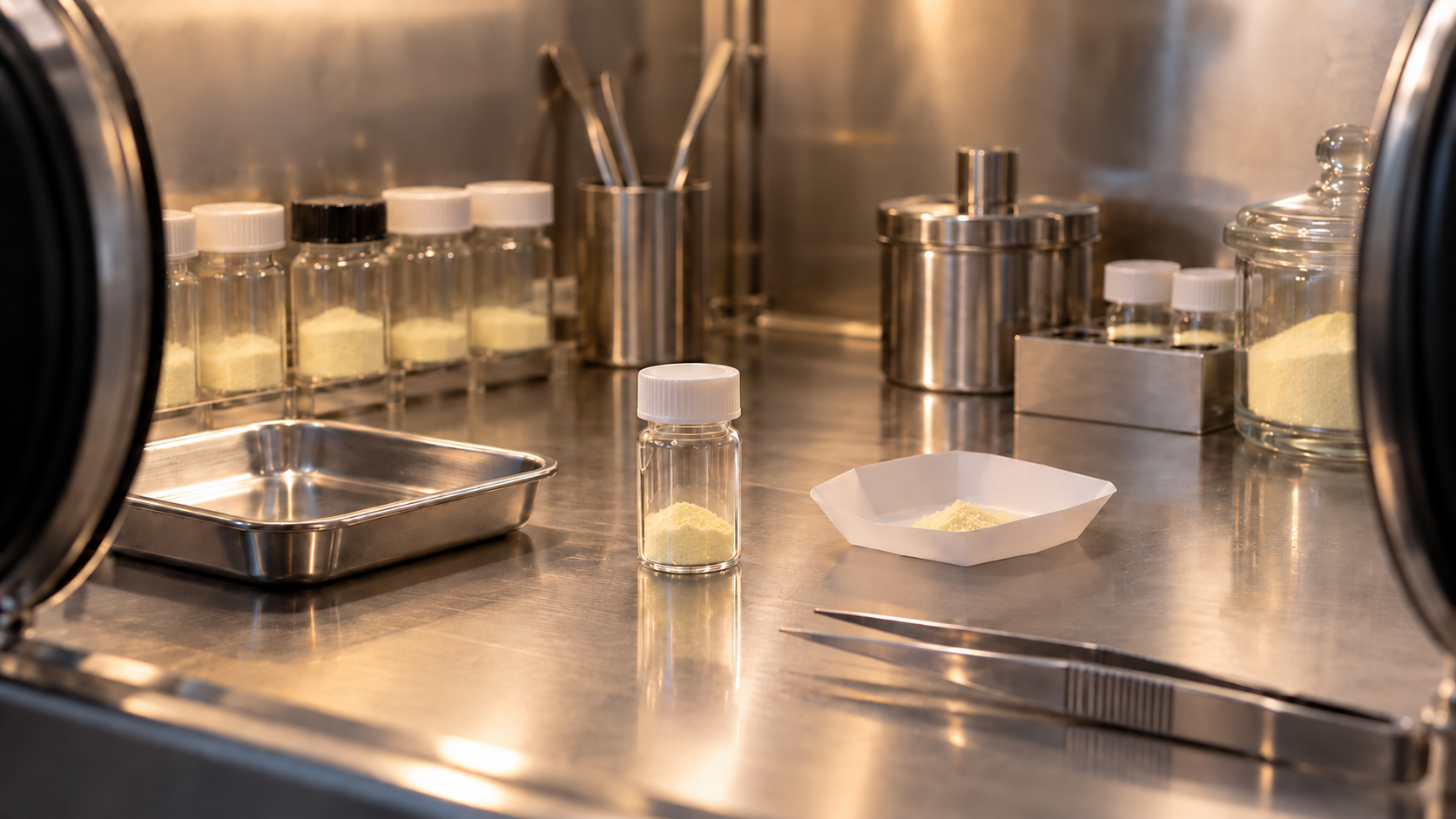

Because Y(MeCp)3 is so sensitive, you must handle it inside a high-quality glovebox. This applies to everything from sampling to loading the tool. The glovebox must keep H2O and O2 levels strictly below 0.1 ppm. Standard industrial nitrogen or argon is not pure enough without extra filtering.
Operators should maintain the gas purifier regularly and check humidity sensors every day. Use a dedicated glovebox for organometallics to prevent cross-contamination from other moisture-releasing chemicals. Even a tiny spike in moisture when using the load-lock can ruin an open container of Y(MeCp)3.
You must follow strict vacuum rules when moving the precursor to the deposition tool's bubbler. Use high-reliability metal-to-metal seals, like VCR or CF fittings, to keep air out. Before opening any valves, run a full "purge-evacuate" cycle at the connection. This usually means 20 to 30 cycles of deep vacuum followed by ultra-high purity (UHP) gas purging.
Next, perform a helium leak test at all connections. For these sensitive ALD processes, a leak rate over 1×10⁻⁹ mbar·L/s is too high. Finally, use electropolished 316L stainless steel for all delivery lines. This prevents moisture from sticking to the inside walls and later mixing with your precursor gas.
Good storage is key to extending the shelf life of Y(MeCp)3. Store the containers in a cool, dark, and dry place. A temperature-controlled chemical cabinet is best. Heat speeds up chemical breakdown, so keeping the temperature stable is a must.
Maintaining your delivery lines is just as important. If the tool has been idle or open to the air, you must bake out the lines. Heat them to 100°C–150°C under a high vacuum for a few hours. This bakes off any trapped moisture before the precursor flows through. Still, the most important factor is starting with a high-quality precursor.
Sourcing from reliable suppliers like Wolfa makes a big difference. Wolfa uses advanced purification and strict moisture-proof packaging. This guarantees that your Y(MeCp)3 arrives pure and stable, greatly reducing the risk of early breakdown.
Handling Y(MeCp)3 safely requires strict moisture control, careful transfers, and good system maintenance. Keep your moisture levels below 0.1 ppm, use "purge-and-evacuate" loading cycles, and bake out your delivery lines. Doing this will stop precursor defects and prevent costly downtime.
Wolfa offers high-purity Y(MeCp)3 with custom packaging to ensure maximum stability. If you want to optimize your ALD process or need technical support for thin films, contact jomin@wolfachem.com today.
